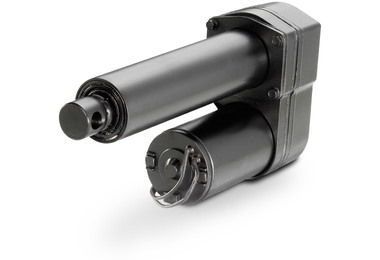

ELECTRAK GX電動推桿

Electrak GX電動推桿配備堅固的絲杠組件，適合需要高達2000 lbf(9 kN)負載能力的應用，而扭簧保持制動器或防逆向驅動ACME螺母（取決于所選的額定負載）可在電動推桿停用時將負載保持在適當位置。擁有前沿的定制化水平，適于末端安裝的各種標準選件以及契合您應用的多種行程長度。

產品介紹

規格

Performance Specifications	Acme Screw	Ball Screw
Input Voltages: VDC	12, 24, 36. 48, 90
Input Voltages: VAC	115, 230, 440
Max Stroke Length: mm (in)	610 (24.0)
Max Dynamic Load: N (lbs)	2250 (500)	6800 (2000)
Max Static Load: N (lbs)	11350 (2550)	18000 (4050)
Max No-Load Speed: mm/s (in/s)	54 (2.1)	61 (2.4)
Max Full-Load Speed: mm/s (in/s)	32 (1.26)	37 (1.4)
Full load duty cycle @ 25ºC (77ºF)	25%
Operating temperature: ºC (ºF)	-25 to +65 (-15 to +150)
Protection Class: Standard (optional)	IP67
Compatible Controls	Varies per model Use our Product Selector for proper selection

Electrak GX特性

Stainless steel extension tube
Overload clutch protection for mid/end of stroke
Auto reset thermal switch for motor protection
Load holding brake with automatic activation
Rugged spur gearing

Lifetime gear lubrication
Self-locking acme screw design
Protective seal
Clevis mounting

Electrak GX選件

Potentiometer
Manual override

Alternate end mounting options
Connector options
